Sports LED Display

Perimeter LED Display LS1280
Perimeter LED Display LS1280
Perimeter LED Display LS1280
Perimeter LED Display LS1280
Perimeter LED Display LS1280
Perimeter LED Display LS1280
Perimeter LED Display LS1280
Perimeter LED Display LS1280
Perimeter LED Display LS1280
Perimeter LED Display LS1280

Perimeter LED Display LS1280

Products Advantages:



Standard size 1280mmx960mm

Both as perimeter and normal connected led display

Soft mask for modules to protect from ball hitting

fold-able and adjustable angle support

soft bumper strip on the top


Perimeter LED Display LS1280

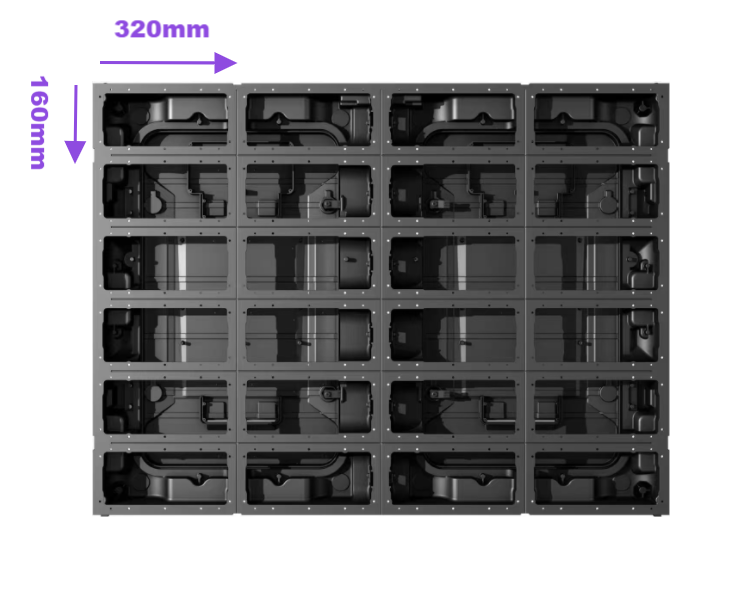

LISN Sports Perimeter LS1280 is a standard size 1280mmx960mm led perimeter design. It is suitable for 320mmx160mm modules.





Perimeter LED Display LS1280


Perimeter LED Display LS1280


each modules can be with customized soft mask to well prevent hitting from ball or athletes and make sure the advertisement videos or pictures plays normally.



Perimeter LED Display LS1280


By using the Triangular, fold-able and adjustable angle support make the perimeters stand more firmly and safer. The angles can be 0-90 degrees by adjusting the support structure to make different viewing angle and effect.



Perimeter LED Display LS1280


LS1280mm not only using for perimeter led display, it also can be stacked and connected as big screen when you take off the structure.


Perimeter LED Display LS1280


Perimeter LED Display LS1280

Specification
Pixels pitchP2.5P3.33P4P5P6.67P8P10
LEDSMD 3 in 1SMD 3 in 1SMD 3 in 1SMD 3 in 1SMD 3 in 1SMD 3 in 1SMD 3 in 1
Module size(mm)320x160320x320320x320320x320320x320320x320320x320
Module resolution128*6464*6480*4064*3248*2440*2032*16
Density160000 pixels/sqm111111 pixels/sqm62500 pixels/sqm40000 pixels/sqm22478 pixels/sqm15625 pixels/sqm10000 pixels/sqm
LED Cabinet size (mm)1280x9601280x9601280x9601280x9601280x9601280x9601280x960
Cabinet weight40KG/PC40KG/PC40KG/PC40KG/PC40KG/PC40KG/PC40KG/PC
MaterialMagnesium alloyMagnesium alloyMagnesium alloyMagnesium alloyMagnesium alloyMagnesium alloyMagnesium alloy
Brightness5500-6500 cd/sqm (Nits)5500-6500 cd/sqm (Nits)5500-6500 cd/sqm (Nits)5500-6500 cd/sqm (Nits)5500-6500 cd/sqm (Nits)5500-6500 cd/sqm (Nits)5500-6500 cd/sqm (Nits)
AVG power consumption350w/sqm350w/sqm350w/sqm350w/sqm350w/sqm350w/sqm350w/sqm
