Rental LED Display LRF500

LISN LRF500 supper flexible rental led display is made from die casting aluminum cabinet with size 500mmx500mm. It is compatible for supper flexible led module 250mmx250mm. The cabinet design can be as flexible as the flexible modules without the curved lock compare to the traditional rental led display.

The back door detachable with hard connection of hub card and power supply in on suit. Supper convenient to replace.

The curvature of the cabinet can be adjusted very flexibly through the handle on the back of the cabinet. And after the curved shape of the screen adjusted, cabinets can be fixed by closing the back locks of.

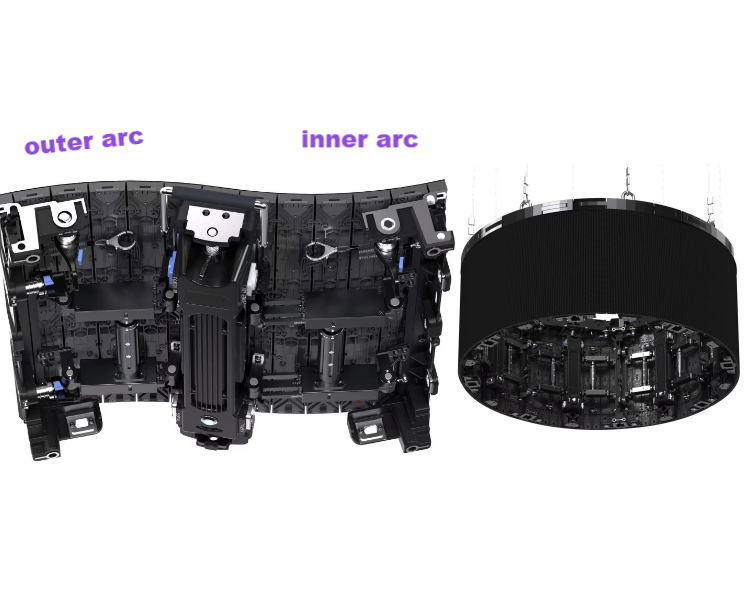

Just one cabinet can realize both inner and outer arcs at the same time without curved locks. Because of the supper flexible design, the connection of LRF500 cabinets with the Zero gap and can do better than normal rental led display when do curved shape especially cylinder shape.

LRF500 can be well connected with normal rental cabinet to make a innovative led video wall. Bright the event participants best visual effects and stage effects

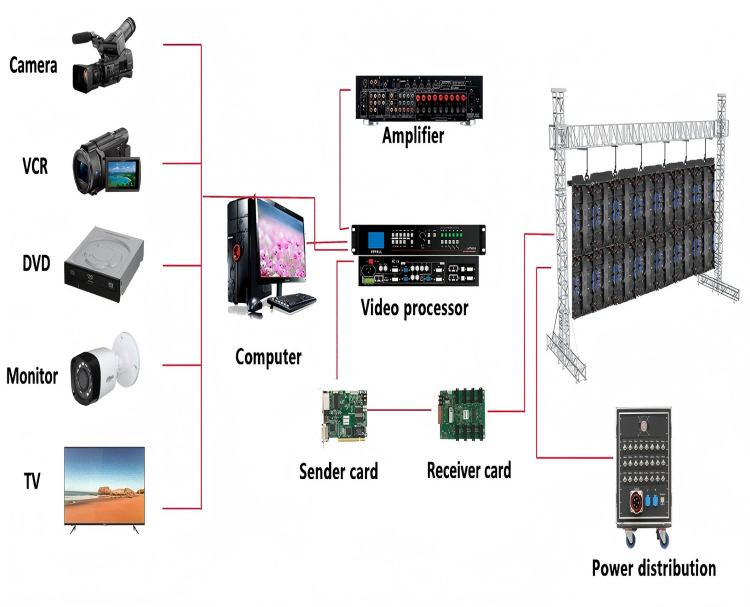

For large events, you may need power distribution box, hanging system, control cards, video processor, Amplifier, and other equipment using for recording or broadcasting the event like Camera, VCR, TV and Monitor....the connection diagram will be a bit more complicated
