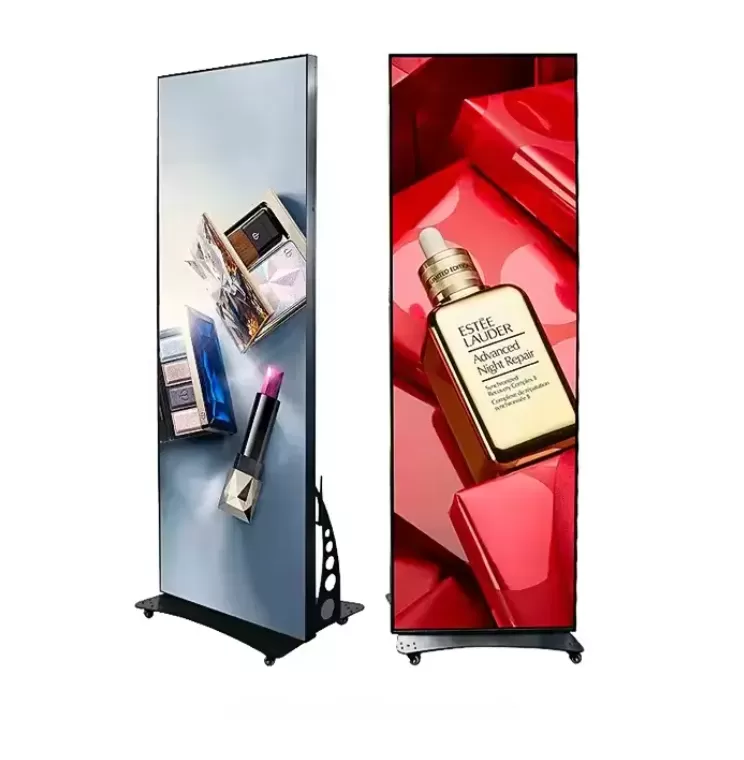

Poster LED LS640-1920
Products Advantages:
Standard size 640x1920mm
Steel supporting structure
Indoor Full front service
Removable structures and wheels for better transport
Products Advantages:
Standard size 640x1920mm
Steel supporting structure
Indoor Full front service
Removable structures and wheels for better transport

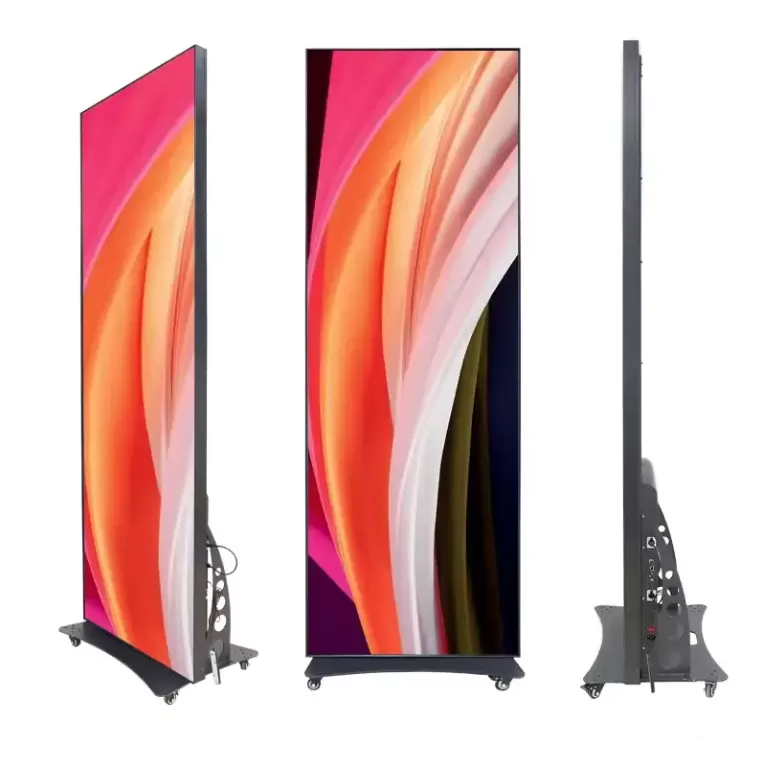

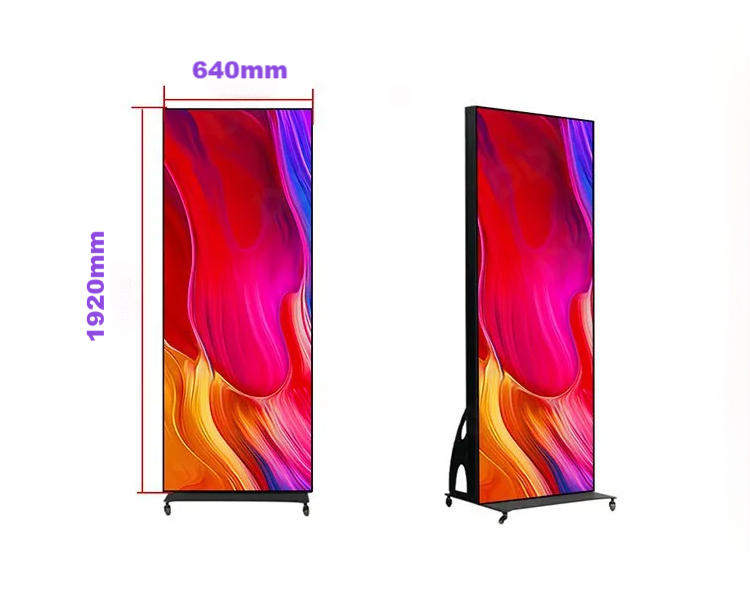

LISN LS640-960 poster led is a standard size 640mmx1920mm design, It is made from steel structure for stronger supporting.

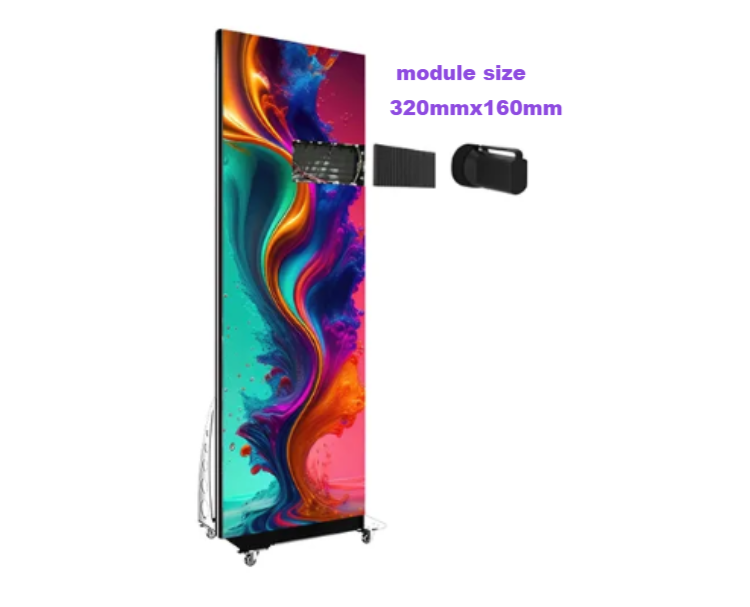

The cabinet is suitable for 320mmx160mm modules with full front service. Modules can be sucked by vacuum tool, and after you take of all the modules, cables ,receiving cards and power supplies can be removed from front side.

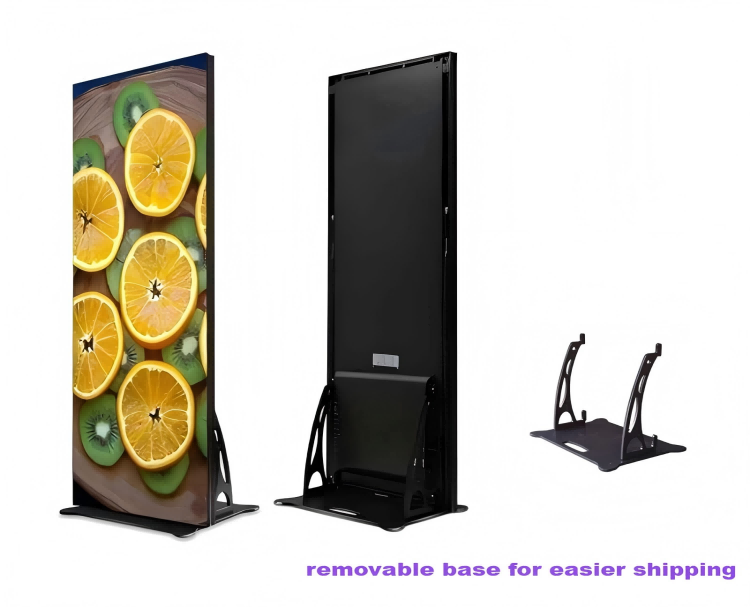

For better transportation, the bottom structure and the wheels can be removed for easier packing and shipping.

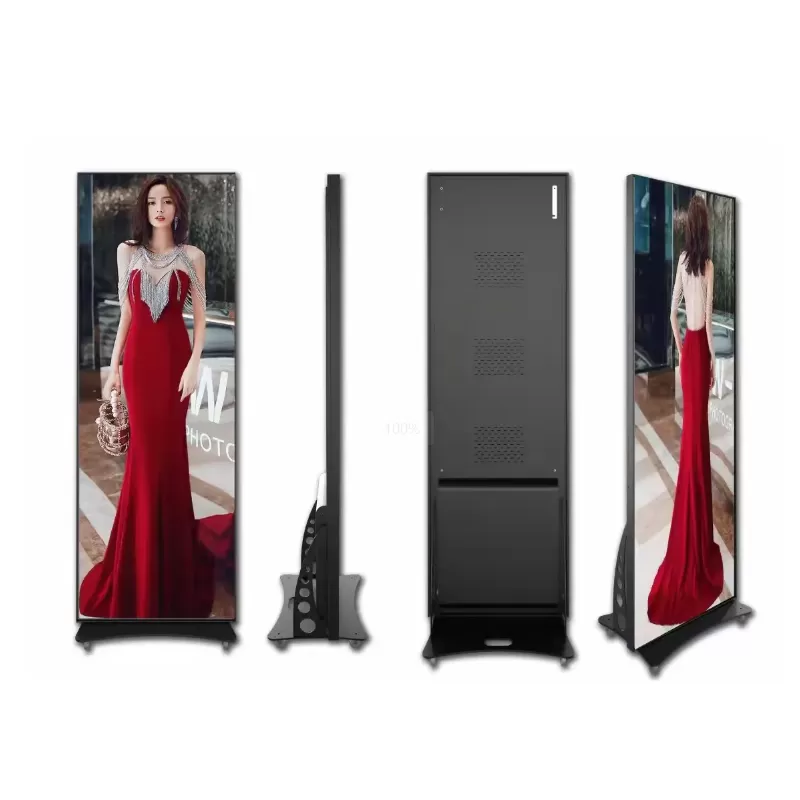

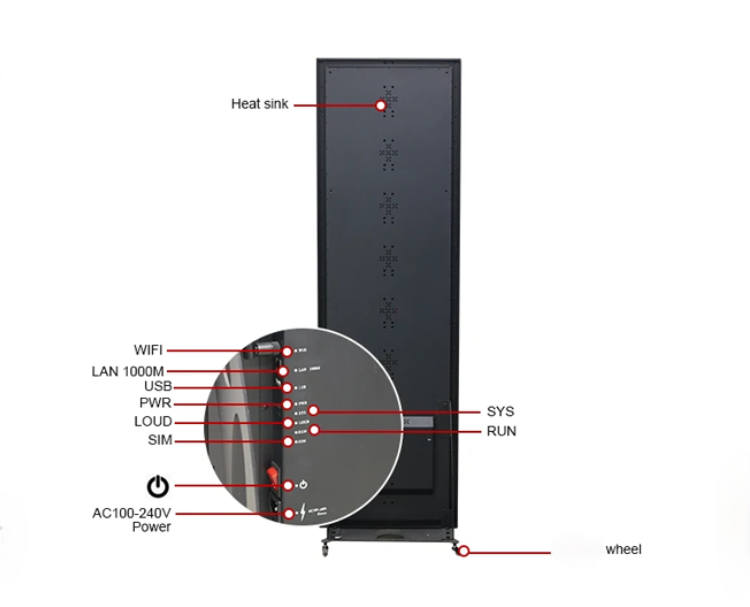

The LS640-1920 is design with heat sink for heat dissipation. And the control box is on the back for customer to chose different control systems like LINSN , Novastar, Colorlight or Huidu by using the USB, WIFI, or LAN signals.

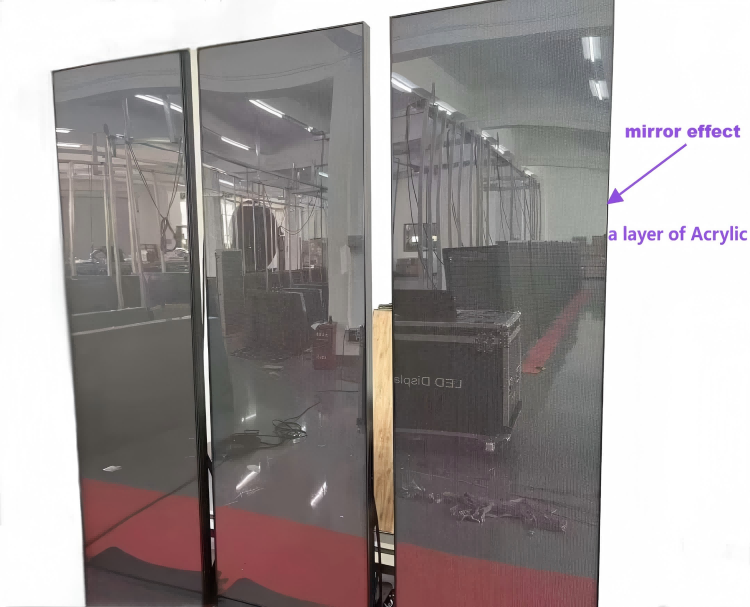

There is a mirror effect by adding a layer of acrylic, which can protect the poster led from water, dust and hitting. It is also removable if you do not need it.

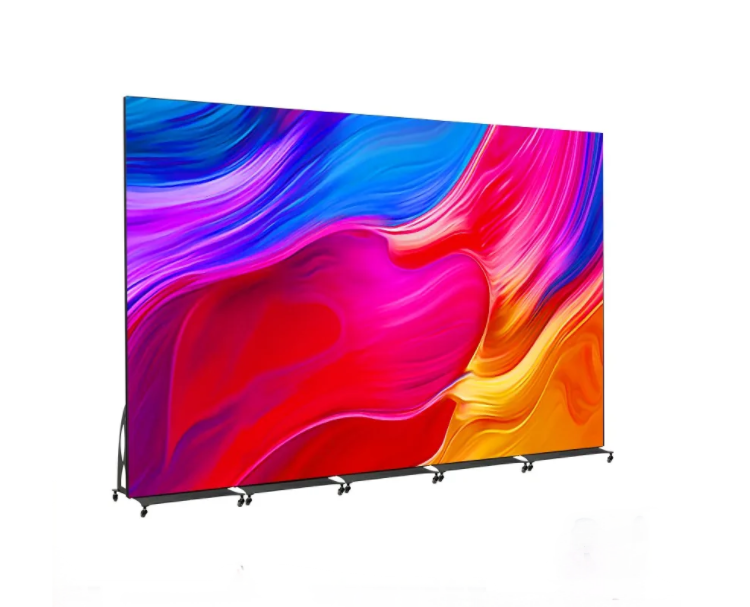

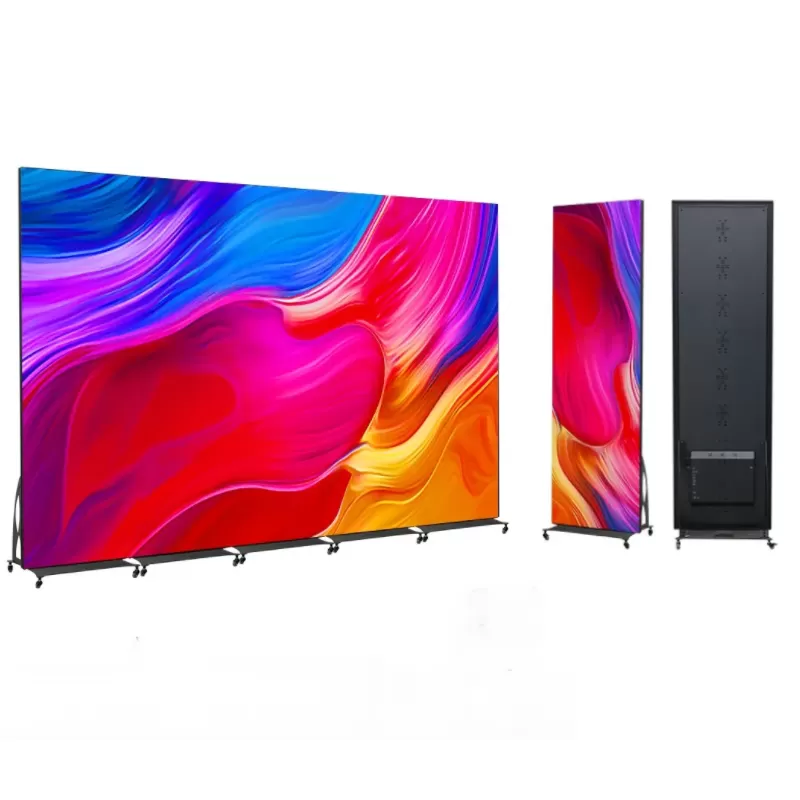

Customer can connect several posters together to make a big digital poster screen without any gap.
| Pixels pitch | P1.875 | P2.5 | P3.07 | P4 |
| LED | SMD 3 in 1 | SMD 3 in 1 | SMD 3 in 1 | SMD 3 in 1 |
| Module size | 192mmx192mm | 320mmx160mm | 320mmx160mm | 320mmx160mm |
| Module resolution | 170*85 | 128*64 | 104*52 | 80*40 |
| Density | 282226 pixels/sqm | 160000 pixels/sqm | 105625 pixels/sqm | 62500 pixels/sqm |
| LED Cabinet size | 640mmx1920mm | 640mmx1920mm | 640mmx1920mm | 640mmx1920mm |
| Cabinet weight | 45KG/sqm | 45KG/sqm | 45KG/sqm | 45KG/sqm |
| Material | Iron | Iron | Iron | Iron |
| Brightness | 400-800 cd/sqm (Nits) | 400-800 cd/sqm (Nits) | 400-800 cd/sqm (Nits) | 400-800 cd/sqm (Nits) |
| AVG power consumption | 320w/sqm | 320w/sqm | 320w/sqm | 320w/sqm |
