Energy saving LED Display

Outdoor Fixed LED Display LOS960

LISN outdoor energy saving led display LOS960 cabinet material is made from aluminum with standard size 960mmx960mm.

Outdoor Fixe LED Display LOS960

LOE960 energy saving led display is compatible with 480mmx320mm modules which can be front service and energy saving, each square meter consume 550W maximum and 250W average, which help save at least 250W comparing to normal outdoor led display.

Outdoor Fixe LED Display LOS960

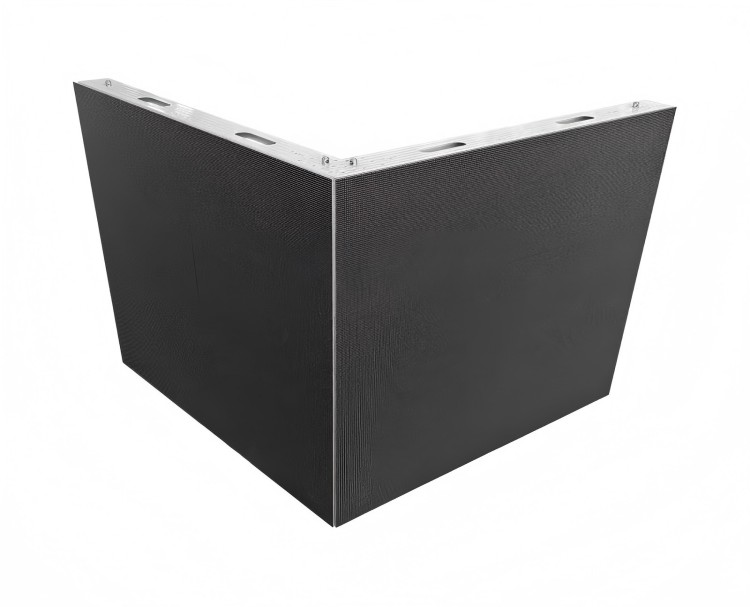

LOS960 led cabinet can be 45 degrees edges cutting to make a 90 degree led screen for outdoor led display project or 3D project .

Outdoor Fixe LED Display LOS960

LISN LED Screen can be installed and run by a simple connection with different control system brands.

Outdoor Fixe LED Display LOS960

Specification

Pixels pitch	P2.5	P3.33	P4	P5	P6.67	P8	P10
LED	SMD 3 in 1	SMD 3 in 1	SMD 3 in 1	SMD 3 in 1	SMD 3 in 1	SMD 3 in 1	SMD 3 in 1
Module size(mm)	320x160	320x160/320x320	320x160/320x320	320x160/320x320	320x160/320x320	320x160/320x320	320x160/320x320
Module resolution	128*64	64*64	80*40	64*32	48*24	40*20	32*16
Density	160000 pixels/sqm	111111 pixels/sqm	62500 pixels/sqm	40000 pixels/sqm	22478 pixels/sqm	15625 pixels/sqm	10000 pixels/sqm
LED Cabinet size (mm)	960x960	960x960	960x960	960x960	960x960	960x960	960x960
Cabinet weight	28KG/PC	28KG/PC	28KG/PC	28KG/PC	28KG/PC	28KG/PC	28KG/PC
Material	Magnesium alloy	Magnesium alloy	Magnesium alloy	Magnesium alloy	Magnesium alloy	Magnesium alloy	Magnesium alloy
Brightness	5500-6500 cd/sqm (Nits)	5500-6500 cd/sqm (Nits)	5500-6500 cd/sqm (Nits)	5500-6500 cd/sqm (Nits)	5500-6500 cd/sqm (Nits)	5500-6500 cd/sqm (Nits)	5500-6500 cd/sqm (Nits)
AVG power consumption	460/sqm	450/sqm	420/sqm	350/sqm	320/sqm	300/sqm	280/sqm

Video

Application

FAQ

Q: do you offer DDP shipping to customer ?

yes, we can offer DDP shipping to customer, so that customer only need to receive the shipment at home or warehouse, no need to pay extra taxes and custom.

Q: what brand leds do you use?

we usually use nationstar led, kinglight led, Hongsheng LED......

Q: how you guarantee product quality

we are using real material, keeping strict production procedures and quality control, all the products will be tested 72 hours before shipping and we will replace free for all the broken part if it is due to quality problem.

Q: How to replace the spare parts

we will provide you manual to help you do replacement

Q: Can i change my shipping address after order confirmed?

Yes, you can change your shipping address before delivery
