LED Modules 320mmx160mm
Products Advantages:
Modules standard size 320mmx160mm
Different Modules with same holes
P2.5, P3, P4, P5, P6.67, P8, P10 on stock
All the modules will be testing 72 hours
Products Advantages:
Modules standard size 320mmx160mm
Different Modules with same holes
P2.5, P3, P4, P5, P6.67, P8, P10 on stock
All the modules will be testing 72 hours

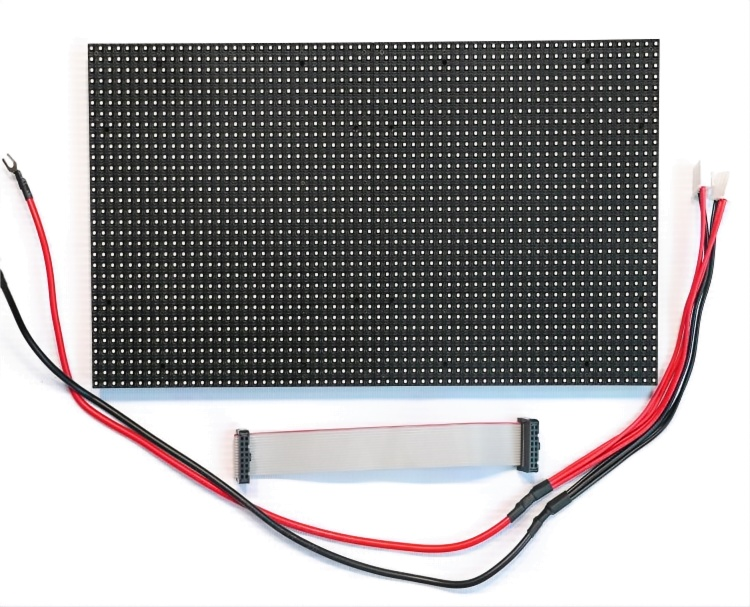

LISN standard size modules 320mmx160mm they are widely used for both indoor and outdoor led display project.
They are with same holes, different pixel modules can be replaced by others. When you buy a P5 led display with 320mmx160mm, you can replaced by P10 modules if you want to change later. In this way you can same cabinets material but several set of 320mmx160mm led modules to make several sets of screen on different events.
All the modules will be tested for 72 hours to guarantee quality before delivery to customer.
| Pixels pitch | P2.5 | P3.07 | P4 | P5 | P6.67 | P8 | P10 |
| LED | SMD 3 in 1 | SMD 3 in 1 | SMD 3 in 1 | SMD 3 in 1 | SMD 3 in 1 | SMD 3 in 1 | SMD 3 in 1 |
| Module size | 320mmx160mm | 160mmx160mm | 192mmx192mm | 320mmx160mm | 320mmx160mm | 320mmx160mm | 320mmx160mm |
| Module resolution | 128*64 | 64*64 | 64*64 | 128*64 | 48*24 | 40*20 | 32*16 |
| Density | 160000 pixels/sqm | 160000 pixels/sqm | 111111 pixels/sqm | 62500 pixels/sqm | 22478 pixels/sqm | 15625 pixels/sqm | 10000 pixels/sqm |
| Waterproof IP level | IP54 /IP65 | IP54 /IP65 | IP54 /IP65 | IP54 /IP65 | IP65 | IP65 | IP65 |
| Module weight | 1KG/PC | 1KG/PC | 1KG/PC | 1KG/PC | 1.5KG/PC | 1.5KG/PC | 1.5KG/PC |
| Brightness | 400-800 (Nits) | 400-800 (Nits) | 400-800 (Nits) | 400-800 (Nits) | 5500 (Nits) | 5500 (Nits) | 5500 (Nits) |
| AVG power consumption | 280w/sqm | 280w/sqm | 280w/sqm | 280w/sqm | 300w/sqm | 300w/sqm | 300w/sqm |
