led modules for LED Signs

LED Modules 192mmx192mm

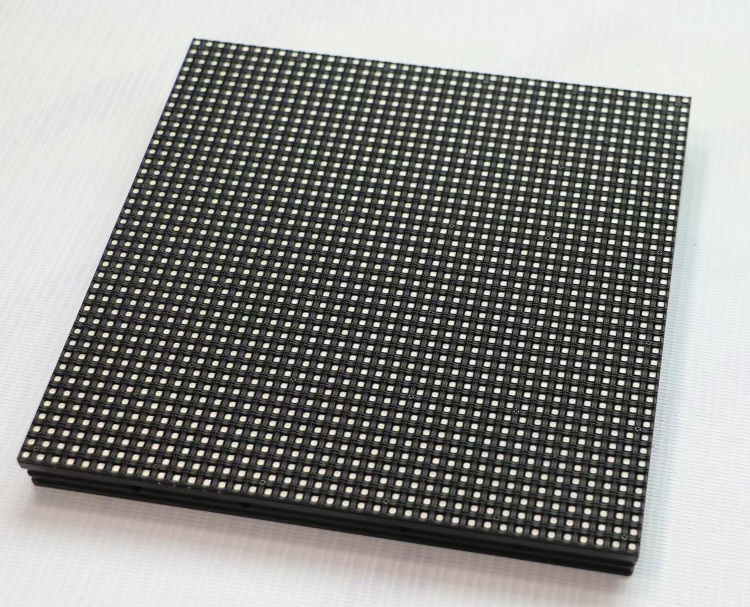

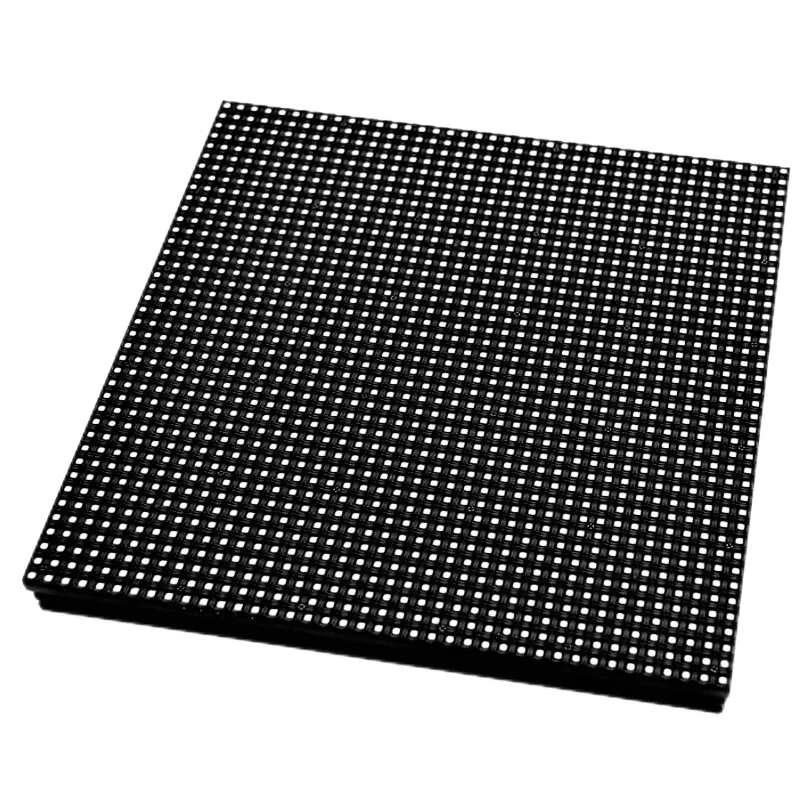

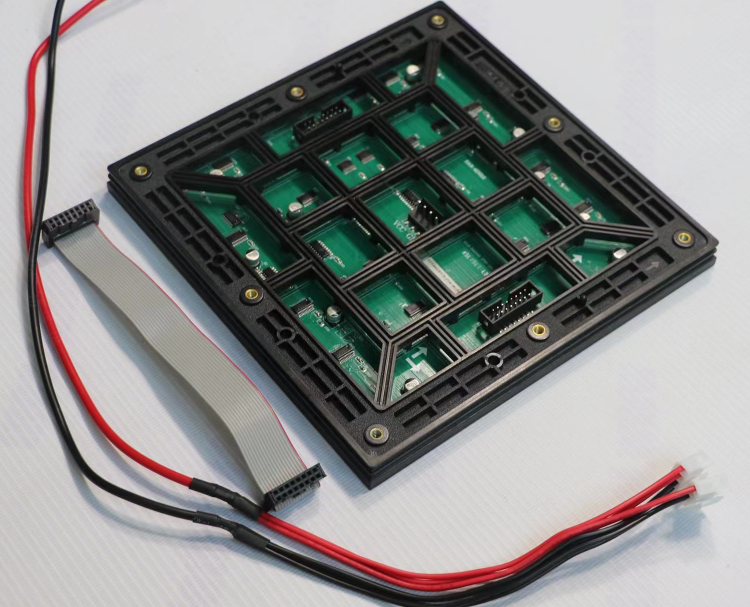

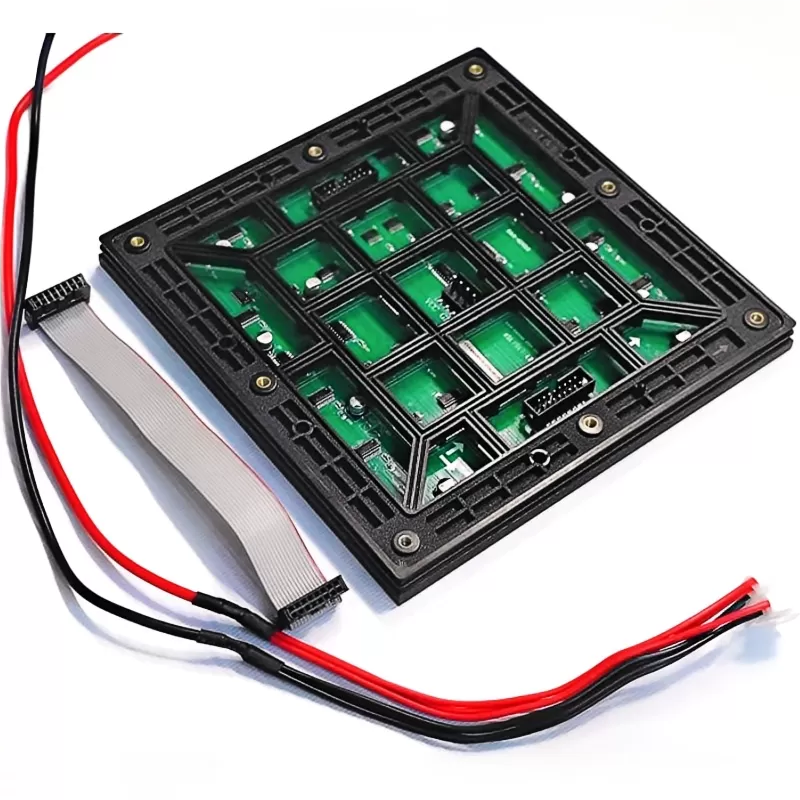

LISN LED 192mmx192mm modules with high brightness 6000nit and1920hz are perfectly used as outdoor waterproof led display. Each module is equipped with data cable and power cable.

LED Modules 192mmx192mm

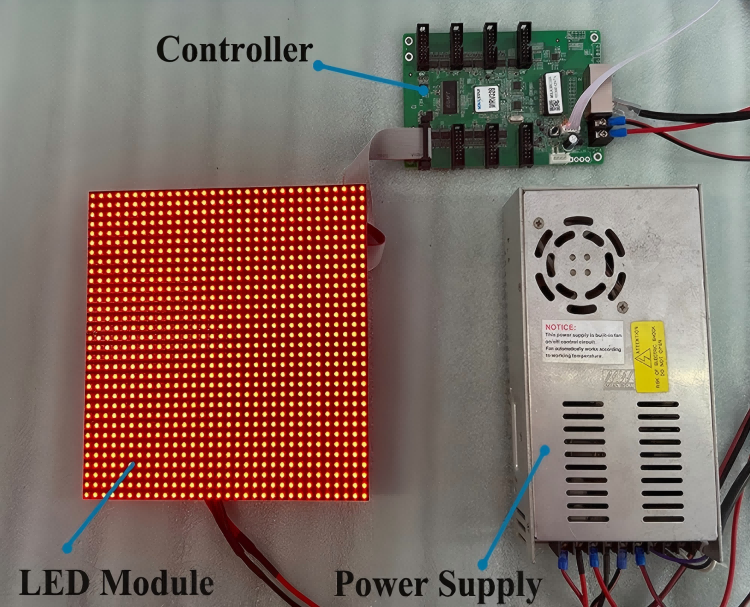

192mmx192mm size module is applicable to P3, P4.81 and P6 outdoor modules, they can work with different control system, and 5V power supply.

LED Modules 192mmx192mm

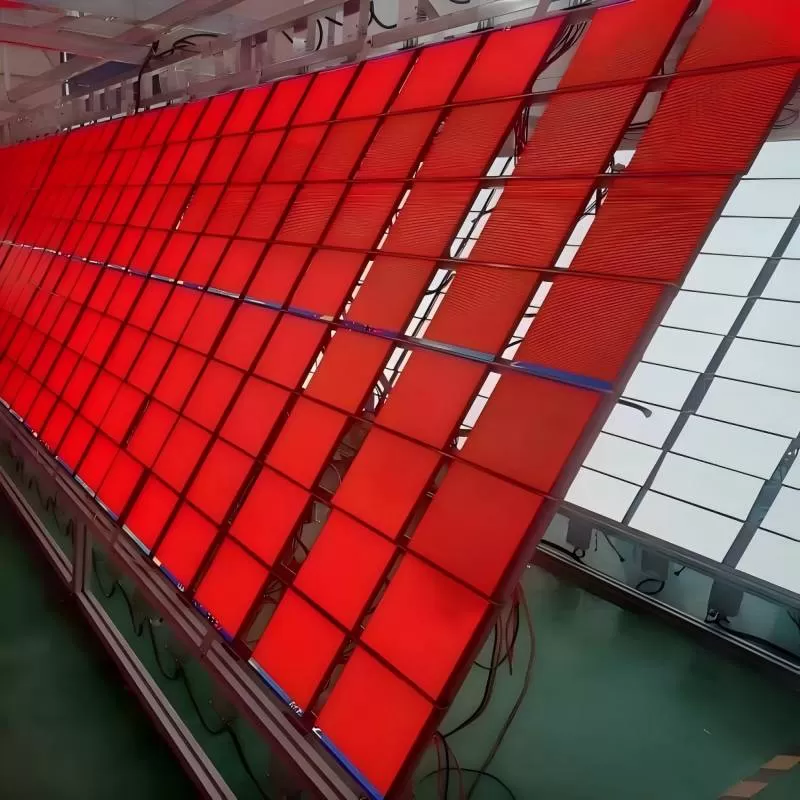

All the modules will be tested for 72 hours to guarantee quality before delivery to customer.

LED Modules 192mmx192mm

Specification

Pixels pitch	P3	P4.81	P6
LED	SMD 3 in 1	SMD 3 in 1	SMD 3 in 1
Module size	192mmx192mm	192mmx192mm	192mmx192mm
Module resolution	64*64	40*40	32*32
Density	111111 pixels/sqm	62500 pixels/sqm	27777 pixels/sqm
Waterproof IP level	IP65	IP65	IP65
Module weight	1.5KG/PC	1.5KG/PC	1.5KG/PC
Brightness	6000 cd/sqm (Nits)	6000 cd/sqm (Nits)	6000 cd/sqm (Nits)
AVG power consumption	300w/sqm	300w/sqm	300w/sqm

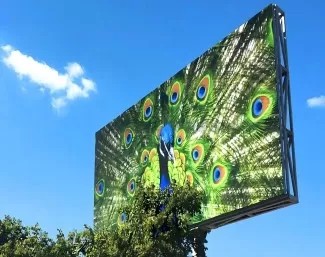

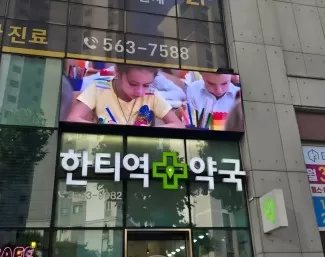

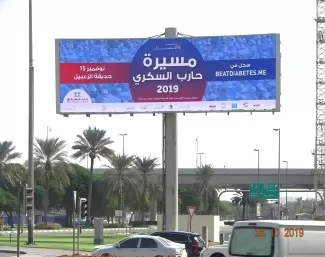

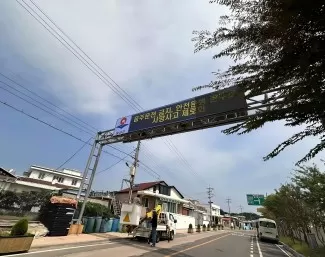

Application

FAQ

Q: what's the mininum order do you accept ?

we accept minium quantity for order is 1 unit

Q: do you offer free sample ?

yes, if customer who have real project and want to try our sample first, we can offer free sample

Q: what brand leds do you use?

we usually use nationstar led, kinglight led, Hongsheng LED......

Q: how you guarantee product quality

we are using real material, keeping strict production procedures and quality control, all the products will be tested 72 hours before shipping and we will replace free for all the broken part if it is due to quality problem.

Q: What is the warranty time for order

We will provide 2-3 years warranty for all the products

Q: What should i do if my shipment lost?

We will buy or suggest you buy Insurance for the shipment, in this way you can get compensation if your shipment lost.
